North American power equipment represents a perfect blend of advanced engineering, safety, and long-term reliability. Designed to perform in demanding environments, these products are trusted across residential, commercial, and industrial applications worldwide. From power generation to precision tools, North American equipment ensures consistent performance, energy efficiency, and user-friendly operation.
Line interactive ups
ALPHA Series ALU 0.65-2.0 KVA
KEY FEATURES
- LED display or LCD display.
- Microprocessor-based digital control
- Wide range of voltage.
- Build-in voltage regulator with double boost / single buck for
reliable power quality - Super fast charger shortens the charging time to 2~4 hours
- Tiny-Load sensing technology prevents the battery from deep
discharge problem while connecting to tiny loads - Auto restart that UPS can automatically start without manual
setting up when AC input power is back on line - Overload protection that alert or shutdown action will be
performed for preventing further damage to UPS during
overload conditions. - Simulated Sine wave output
- Intelligent battery management: battery temperature
compensation to extend the battery life; three-stage charging
to shorten recharge time - Auto track mains phase to ensure that the inverter output
voltage has the same phase with utility voltage, reducing
transfer time and peak surge
| MODEL NAME | ALPHA 650 | ALPHA 850 | ALPHA 1000 | ALPHA 1200 | ALPHA 1500 | ALPHA 2000 | |
| Power rating | VA/Watt | 650VA/390W | 850VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W |
| Input connection | Wiring/socket | Power Cord NEMA 5-15P / 5-20P | |||||
| Input performance | Voltage range | 55V – 140V AC | |||||
| Rated frequency | 50Hz/60Hz (auto sensing) | ||||||
| Output performance | Nominal Output voltage | 110/120/125V | |||||
| Rated Output frequency | 50Hz +/-1Hz | ||||||
| AC Voltage Ragulation (Batt. mode) | +/-10% | ||||||
| Output Waveform | Modified Sine wave | ||||||
| Technology | Line interactive | ||||||
| Cold Start | Available | ||||||

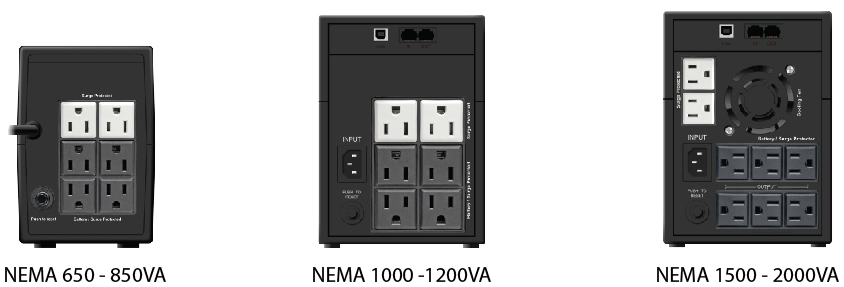

| Output connection | Output socket | Universal / Schuko / 3 * IEC C13 / NEMA | |||||
| Battery | Voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 24VDC |
| Capacity(AH) | 1 x 12V/7Ah | 1 x 12V/9Ah | 2 x 12V/7Ah | 2 x 12V/7Ah | 2 x 12V/9Ah | 2 x 12V/9Ah | |
| Backup time | Depending on load | ||||||
| Typical charging time | 2-4 Hours recharge to 90% capacity | ||||||
| Transfer time | Battery mode – Line mode | 2-6ms typical | |||||
| Display | LED / LCD (Optional) | ||||||
| Protection | Shortcircuit, Overload, Discharge and Overcharge protection | ||||||
| Audible Alarm | Avaiable | ||||||
| Environment | Operating Temperature | 32° to 104°F (0° to 40°C) | |||||
| Noise Level | <40 dB | <45 dB | |||||
| Storage Temperature | 32° to 122°F (0° to 50°C) | ||||||
| Interface | USB | Optional | |||||
| TVSS protection | Optional (RJ11) | Optional (RJ45) | |||||
| Accessory | USB cable | Optional | |||||
| CD for COM S/W | Optional | ||||||
| RS 232 Port | Optional | ||||||
| Physical | Dimension(DxWxH) | 278 * 100 * 143 mm | 364 * 139 * 195 mm | ||||
| Net weight | 4.2 kg | 4.9 kg | 7.8 kg | 7.9 kg | 9.1 kg | 9.3 kg | |
