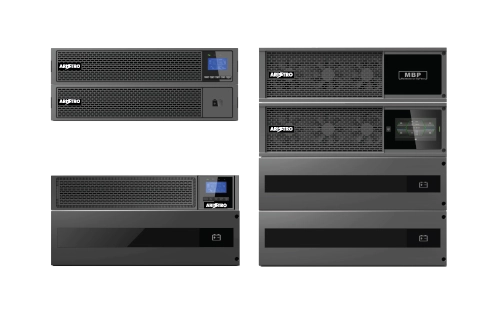

Rack Mount High Frequency UPS
VENUS-Series AVRU 1-3 KVA-RT
- True double-conversion design with high adaptability to harsh
mains conditions - Real PF 1 can provide more power in same space
- High efficiency results in energy saving
- Adjustable charging current and flexible battery configuration
- Optimized changing method to expand battery life time.
- 10-20K 3-3 model can be configure as 3-1 or 1-1 model to
meet utility and load wiring - 10-20K 3-3 model can be configure as single source input or
dual source input for utility and bypass - Built-in OVCD protection, fan lock detection, over temperature
detection, overload warning to enhance the product reliability - Programmable outlet group will extend back up time for most
critical equipment (6-20K need PDU model) - Automatically detecting additional EBM quantity will simplify EBM
installation for IT users - Compact size requiring small installation space
- Hot swappable battery will save customer service cost (For 1-3K
standard UPS model) - Low audible noise at typical load
- Dot matrix LCD supports up to 10 languages for easy installation and
service. 10-20K 3-3 model support colorfu,l touchable LCD display
with gravity sensor - An embedded Ethernet port solution provide safe network connection to
Cloud which will meet the increasing IoT trend - WLAN module for IoT connection
- Mobile APP for monitoring, configuration. Support Android/iOS
- USB HID enables monitoring on UPS without software installation
- Dry contactor for industrial condition
- Upgraded network card to comply with IEC standard for cybersecurity
Benifet
Network connected and data to cloud
- Easy to setup the Safe connection to Cloud
- Connect to Cloud through MQTT protocol (the most widely used IoT protocol)
- Real time health monitoring on the equipment to enable business continuity and failure prevention
- Remote monitoring, scheduled maintenance and UPS firmware upgrade *
- Improve the data visibility to the service people and end user
- Reduce the responsive time on product failure as Cloud push the exact information to end user and service people at the same time
- Create value added service opportunities based on digitalization transformation

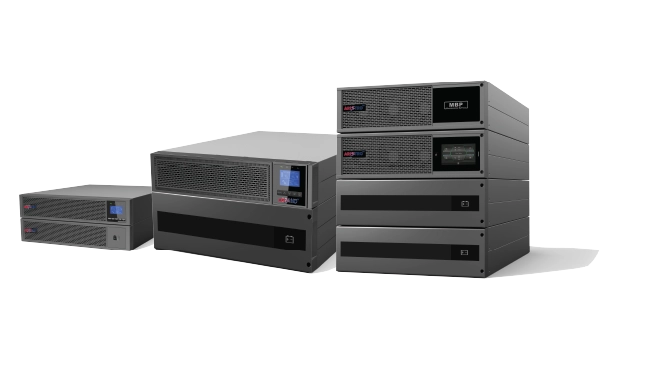

New full-range double conversion UPS
High density, true double conversion on-line power protection
for IT (Information technology) and OT (operation technology)
applications. Capable of supporting loads from 1 to 20kVA in a
rack/tower convertible form with a 2U/3U space.
This latest range of UPS comes with future-proof connectivity
design having the capability to connect to cloud seamlessly
to allow the monitoring of the UPS online through any internet
connected device. To ensure users information is safe and
protected, these connectivity is compliant with IEC standard
cybersecurity and GDPR regulation.
| Model | AVRU 1K | AVRU 1KL | AVRU 2K | AVRU 2KL | AVRU 3K | AVRU 3KL | |
| Power Rating | VA/Watt | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W | |||
| Efficiency | Double Conversion Mode | 91% | 93% | ||||
| ECO Mode | 97% | 97% | |||||
| Input Performance | Voltage range | 160V-300V 100% load, 110V-160V derating to 50% load linearly | |||||
| Rated Frequency | 50Hz/60Hz | ||||||
| Frequency range | 40Hz-70Hz (45Hz-55Hz 54Hz-66Hz @load >60% | ||||||
| PF | >0.99 | ||||||
| THDi | <5% | ||||||
| Input Connection | IEC C14 | IEC C20 | |||||
| Battery | Voltage | 24V/36V DC | 36V DC | 48V/72V DC | 72V DC | 72V/96V DC | 72V DC |
| Capacity (AH) | 2x12V9Ah / 3x12V7Ah | NA | 4x12V9Ah / 6x12V7Ah | NA | 6x12V9Ah | NA | |
| Backup time Typical Value by default battery Capacity, PF=1 | 3 min – 12 min depending on load | ||||||
| Max. connect external batt. module qty. | 4 | 4 | 4 | ||||
| Charge | Charging Current | 1.5A | 8A -12A adjustable | 1.5A | 8A -12A adjustable | 1.5A | 8A -12A adjustable |
| Recharging time | 3hr to 90% | N/A | 3hr to 90% | N/A | 3hr to 90% | N/A | |
| Output Performance | Rated Voltage | 200/208/220/230/240VAC (derating 10% at 208V, derating 20% at 200V) | |||||
| Rated Frequency | 50Hz/60Hz | ||||||
| Maximum PF | 1 | ||||||
| Voltage Accuracy | +/-1% | ||||||
| THDv | <1% linear load , <5% non linear load | ||||||
| Transfer Time | 0ms (Line<->Inverter), 4ms (Line<->bypass), 10ms (ECO<->Inverter) | ||||||
| Crest Ratio | 3:01 | ||||||
| Overload (line mode) | 100%<load <105% continuous, 105%<load <125% for 3minutes, 125%<load <150% for 30second, >150% for 500ms. | ||||||
| Output Connection | Wiring/Socket | 1 main outlet group (with 4xIEC C13) and 1 programable outlet group (with IEC C13) | 1 main outlet group (with 4xIEC C13 + 1xIEC C19) and 1 programable outlet group (with IEC C13) | ||||
| Load Segment Control | YES | ||||||
| Environment | Operating temperature | 0-40°C | |||||
| Relative Humidity | 0-95% | ||||||
| Operating Altitude | 0-3000m (the load derating 1% every up 100m @1000-3000m) | ||||||
| Acoustic Noise | <50dB @ typical load with battery fully charged | ||||||
| Physical performance | Dimension (W*D*H) mm | 438*445*86.5 (2U) | 438*510*86.5 (2U) 438*600*86.5 (2U) | 438*600*86.5 (2U) | |||
| IP protection level | IP20 | ||||||
| Model | AVRU 1K | AVRU 1KL | AVRU 2K | AVRU 2KL | AVRU 3K | AVRU 3KL | |
| HMI (human-machine interface) | Display | Dot matrix LCD, rotatable manually/(optional segment LCD) | |||||
| Language | 10 Languages | ||||||
| USB | USB 2.0 with HID | ||||||
| RS232 | Yes (DB9) | ||||||
| Dry in/out | 1 programable dry in; 1 programable dry out | ||||||
| EPO | Yes | ||||||
| Intelligent slot | Yes (for long card) | ||||||
| Network card | Optional, NMC long card | ||||||
| Modbus card | Optional , CMC/Modbus Long Card | ||||||
| Dry contactor card | Optional AS400 Long Card | ||||||
| WLAN module | Optional , HDMI type | ||||||
| Ethernet port for IOT | RJ45 | ||||||
| Monitor software | Winpower | ||||||
| Other working mode | CVCF | Yes (derating to 60% load) | |||||
| Parallel | NO | ||||||
| Accessory | Maintenance bypass switch | N/A | |||||
| Input power cable | Yes | ||||||
| Output power cable | Yes, 1*10A | ||||||
| EBM cable | Yes (in EBM) | ||||||
| USB cable | Yes | ||||||
| RS232 cable | Optional | ||||||
| Rail kit | Optional | ||||||
| Tower Feet | Yes | ||||||
| Rack ear | Yes | ||||||
| Manual | Yes | ||||||
| Certification | CE, IEC/EN 62040 | ||||||
| EMI | Conduction/Radiation | C2 | |||||
| EMS | ESD | IEC/EN 61000-4-2 | |||||
| RS | IEC/EN 61000-4-3 | ||||||
| EFT | IEC/EN 61000-4-4 | ||||||
| Surge | IEC/EN 61000-4-5 | ||||||
 | ||
3K rear panel | 2K rear panel | 1K rear panel |
 | ||
3K EBM rear pane | l2K EBM rear panel | 1K EBM rear panel |
NMC Key feature |  |
