High Frequency Online UPS
DELTA Series ADOU 6-10 KVA
- VFI technology (online/double conversion) protects against all network problems
- Micro processor control/ digital signal processor 0.9 output Power factor
- High efficiency results in energy saving and supports energy-saving ECO mode
- Intelligent communication/SNMP slot enables remote
monitoring (Optional) - Wide input voltage and frequency range, support CVCF
- Space-saving design with integrated battery system
- Parallel available with Parallel card (maximum 3, optional)
- Integrated fault operation security for manual bypass switch
- Compliance CE with standard EN62040
Uninterruptible security for applications in the SMB sector
Real VFI / double conversion online technology is suitable for safe supply application-critical consumers in the IT environment, such as workstations, servers, storage systems, as well as in the area of sensitive switching and control systems. The new Delta models in the performance levels in 6000 and 10000 VA range represent consistent further development of the well-proven and highly reliable series. With the lag increased to 0.9, the power factor was taken into account for the demand for higher-performance active consumers. The ECO and frequency inverter for operation mode highlights the requirements for a modern, versatile UPS.
Optimal control and information, “Dual-monitoring” enabled interfaces extend communication opportunities. The universally usable communication
slot also allows for the integration of SNMP network interface cards that allow for monitoring and management options, particularly multi-server shutdown.
The multilingual graphical LCD display provides all the important operating states and values that can be stored
and retrieved in addition to real-time data storage in plain text.
| MODEL NAME | POWER RATING | ADOU6K 6K | ADOU6KL 6K | ADOU10K 10K | ADOU10KL 10K |
| CAPACITY | VA/W | 6000VA/5400W | 10000VA/9000W | ||
| INPUT | Input Power Factor | >=0.99 | |||
| Input Voltage Range | 185-275Vac @ 100% load 120-185Vac derating to 50% load linear | ||||
| Frequency Range | 40-70Hz (46-54/56-64Hz @ load>60%) | ||||
| Rated Frequency | 50/60Hz | ||||
| THDi | <3%@linear load, <5%@non-linear load | ||||
| OUTPUT | Output Power Factor | 0.9 | |||
| Output Voltage | 208/220/230/240VAC (derating to 90% load @208V) | ||||
| Voltage Regulation | ±1% | ||||
| Frequency Range | 50/60Hz | ||||
| Over Load | 105%~150% for 0.5Sec | ||||
| Voltage Distortion (THDv) | <2%@linear load, <4%@non-linear load | ||||
| Output Waveform | 3:1 Max | ||||
| Crest Ratio | Pure Sine Wave | ||||
| EFFICIENCY | Double Conversion Mode | 94% | |||
| Eco Mode | 98% | ||||
| BATTERY | Battery Type | VRLA | |||
| Battery | VRLA 12V / 7Ah | VRLA 12V / 9Ah | |||
| Number of Internal Battery | 16 | N/A 16 | 16 | N/A 16 | |
| Rated Battery Voltage | 192VDC | 192VDC | 192VDC | 192VDC | |
| Charging Current | 1.4A | 2/4A | 2A | 2/4A | |
| Recharging time (90%) | 3 hours | N/A | 3 hours | N/A | |
| TRANSFER TIME | Battery Mode <-> Inverter Mode | 0ms | |||
| Inverter Mode <-> Bypass Mode | <4ms | ||||
| ECO Mode <-> Battery Mode | <10ms | ||||
| DISPLAY | Segment LCD | ||||
| AUDIBLE ALARM | Yes | ||||
| Environment | Operating temp. | 0-40˚C | |||
| Relative Humidity | 20-90% | ||||
| Operating Altitude | 0~3000m (the load derating 1 % every up 100m @1000~3000m) | ||||
| Acoustic Noise | <50dB @ typical load with battery fully charged | ||||
| Certification | Certification/Standard | CE, IEC/EN 62040 | |||
| EMS | ESD | IEC61000-4-2, Level 3 | |||
| RS | IEC61000-4-3, Level 3 | ||||
| EFT | IEC61000-4-4, Level 4 | ||||
| Surge | IEC61000-4-5, Level 4 | ||||
| EMI | Conduction/Radiation | C3 | |||
| IP protection level | IP20 | ||||
| Physical performance | Dimension(W*D*H) mm | 248x500x616 | 212x500x420 | x500x616 | 212x500x420 |
| Net Weight(KG) | 59 | 15 | 63 | 16 | |
| HMI (human-machine interface) | Display | segment LCD | |||
| USB | Optional | ||||
| RS232 | yes | ||||
| EPO | yes | ||||
| Intelligent slot | yes (for long card) | ||||
| Network card | Optional, NMC long card | ||||
| Modbus card | Optional, CMC/Modbus, long card | ||||
| Dry contactor card | Optional, AS400, long card | ||||
| Monitor software | Winpower | ||||
| Accessory | Maintenance bypass switch | Optional | |||
| Input power connection | hardware terminal connection | ||||
| Output power connection | hardware terminal connection | ||||
| EBM cable | yes (in EBM) | ||||
| USB cable | Optional | ||||
| RS232 cable | Yes | ||||
| Manual | Yes | ||||

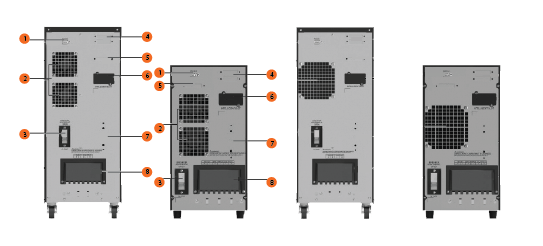

 | ADOU 6-10K rear 1. RS232 |
NMC .Key feature |  |
