Line interactive ups

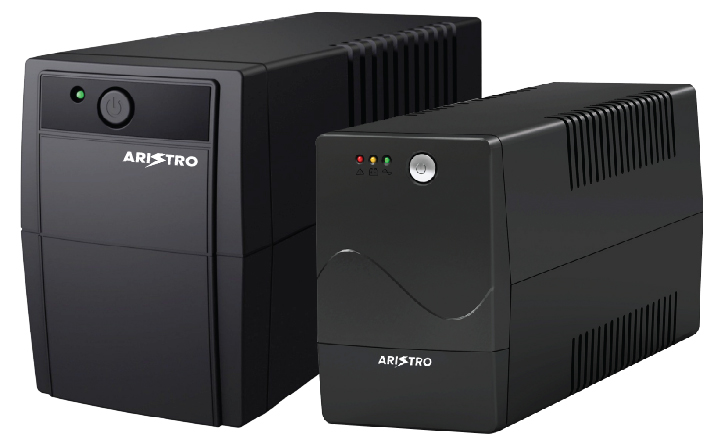

Mercury Series ALU 0.6-2.0 KVA
KEY FEATURES
- LED display or LCD display
- Microprocessor-based digital control
- Wide range of
- Build-in voltage regulator with double boost / single buck for reliable power quality
- Super fast charger shortens the charging time to 2~4 hours
- Tiny-Load sensing technology prevents the battery from deep discharge problem while connecting to tiny loads
- Auto restart that UPS can automatically start without manual setting up when AC input power is back on line
- Overload protection that alert or shutdown action will be performed for preventing further damage to UPS during overload
- Simulated Sine wave output
- Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time
- Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge
| MODEL NAME ALU 2200 | ALU 2400 | ALU 2600 | ALU 2800 | ALU 3000 | ALU 3200 | ||
| Power rating | VA/Watt | 650VA/390W | 850VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W |
| Input connection | Wiring/socket | Fixed power cord 3 pin plug UK / Schoku / IEC C14 | |||||
| Input performance | Voltage range | 140V – 300V AC / 160V – 270V AC | |||||
| Rated frequency | 50Hz/60Hz (auto sensing) | ||||||
Output performance Output connection | Nominal Output voltage | 220/230/240V | |||||
| Rated Output frequency | 50Hz +/-1Hz | ||||||
| AC Voltage Regulation (Batt. mode) | +/-10% | ||||||
| Output Waveform | Modified Sine wave | ||||||
| Technology | Line interactive | ||||||
| Cold Start | Available | ||||||
| Output socket | Universal / Schoku / 3 * IEC C13 | ||||||
| Battery | Voltage | 12VDC | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC |
| Capacity(AH) | 1x12V/7.5Ah | 1x12V/9.0Ah | 1 x 12V/9.0Ah | 2 x 12V/7.5Ah | 2 x12V/9.0Ah | 2 x12V/9.0Ah | |
| Backup time | Depending on load | ||||||
| Typical Charging time | 2-4 Hours recharge to 90% capacity | ||||||
| Transfer time | Battery mode – Line mode | 2-6ms typical | |||||
| Display | LED / LCD (Optional) | ||||||
| Protection | Short circuit, Overload , Discharge and Overcharge protection | ||||||
| Audible Alarm | Available | ||||||
| Environment | Operating Temperature | 0 – 40°C | |||||
| Noise Level | <40 dB | <45 dB | |||||
| Interface | USB | Optional | |||||
| TVSS protection | Optional (RJ11) | Optional (RJ45) | |||||
| Accessory | USB cable | Optional | |||||
| CD for COM S/W | Optional | ||||||
| RS 232 Port | Optional | ||||||
| Physical | Dimension(DxWxH) | 278 * 100 * 143 mm | 364 * 139 * 195 mm | ||||
| Net weight | 4.2 kg | 4.9 kg | 5.2 kg | 7.9 kg | 9.1 kg | 9.3 kg | |
