Commercial Gasoline H series Generator - Global Version
Gasoline Generator 2.2KVA - 11.5KVA
KEY FEATURES
- Power range: 2.2kW – 11.5kW
- 220V / 50Hz output
- Honda Petrol engine (4-stroke, OHV)
- Electric + recoil start
- 100% copper alternator
- Low oil & overload protection
- Digital display & fuel gauge
- Multiple power outlets (16A–40A)
- Fuel tank: 12L – 40L
- Noise: 70–82 dBA
- Solid wheels for mobility
- Dual Fuel Optional (Gasoline & LPG)
- 3-year warranty (home use)

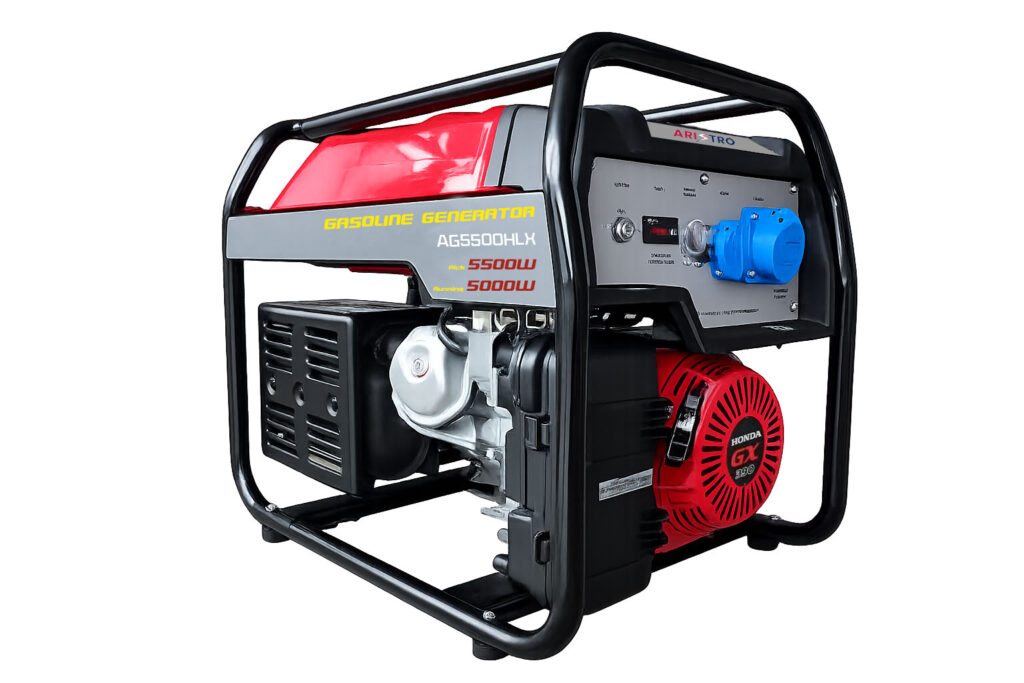

MODEL | AG2200HLX | AG3300HLX | AG5500HLX | AG6500GLX | AG8500GLX | AG11500GLX |
Gasoline Peak Watt | 2200W | 3300W | 5500W | 6500W | 8500W | 11500W |
Gasoline Running Watt | 2000W | 3000W | 5000W | 6000W | 8000W | 11000W |
Gasoline Peak Amps | 10.0A, 220V | 15.0A, 220V | 25.0A, 220V | 29.5A, 220V | 38.6A, 220V | 50.0A, 220V |
Gasoline Running Amps | 9.0A, 220V | 13.6A, 220V | 22.7A, 220V | 27.2A, 220V | 36.3A, 220V | 45.4A, 220V |
|
|
|
|
|
|
|
Engine Brand | HONDA | HONDA | HONDA | HONDA | HONDA | HONDA |
Engine model | GX160 | GX270 | GX390 | GX390 | GX630 | GX690 |
Engine Displacement | 163CC | 270CC | 389CC | 389CC | 688CC | 688CC |
Engine Max. output | 4.8 HP | 8.4 HP | 11.7 HP | 11.7 HP | 20.8 HP | 22.1 HP |
Engine Bore x Stoke | 68*45mm | 77*58mm | 88*64mm | 88*64mm | 2/78*72mm | 2/78*72mm |
Engine Type | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV |
Engine RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Engine Oil Capacity | 0.6L / 20.2oz | 1.1L / 37.1oz | 1.1L / 37.1oz | 1.1L / 37.1oz | 1.7L / 57.48oz | 1.7L / 57.48oz |
Engine Oil Type | 10W30 | 10W30 | 10W30 | 10W30 | 10W30 | 10W30 |
Ignition System | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto |
Automatic Low Oil Shutdown | YES | YES | YES | YES | YES | YES |
Fuel | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane |
|
|
|
|
|
|
|
Alternator Brand | Aristro | Aristro | Aristro | Aristro | Aristro | Aristro |
Alternator Model | AA2200 | AA3300 | AA5500 | AA6500 | AA8500 | AA11500 |
Alternator Capacity | 2200W | 3300W | 5500W | 6500W | 8500W | 11500W |
Alternator Core | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper |
Alternator Type | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase |
Ac Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
AC Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
DC Voltage | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A |
Insulation Class | H | H | H | H | H | H |
|
|
|
|
|
|
|
Transfer Switch Ready | Optional | Optional | Optional | Optional | Optional | Optional |
RV Ready | Optional | Optional | Optional | Optional | Optional | Optional |
Display Type | Digital Readout | Digital Readout | Digital Readout | Digital Readout | Digital Readout | Digital Readout |
Oil Alert | Yes | Yes | Yes | Yes | Yes | Yes |
MODEL | AG2200HLX | AG3300HLX | AG5500HLX | AG6500GLX | AG8500GLX | AG11500GLX |
Noice level | 73 dBA | 73 dBA | 78 dBA | 78 dBA | 80 dBA | 82 dBA |
Fuel Gauge | Yes | Yes | Yes | Yes | Yes | Yes |
Fuel Tank Capacity | 3.9 gal (15L) | 3.9 gal (15L) | 6.6 gal (25L) | 6.6 gal (25L) | 10.5 gal (40L) | 10.5 gal (40L) |
Gasoline Run Time @75% load | 0.9L/Hr | 1.4L/Hr | 2.25L/Hr | 2.5L/Hr | 3.8L/Hr | 4.3L/Hr |
Starter Type | Recoil | Electric & Recoil | Electric & Recoil | Electric & Recoil | Electric | Electric |
Choke Type | Manual | Manual | Manual | Manual | Manual | Manual |
Overload Protection | Yes | Yes | Yes | Yes | Yes | Yes |
Outlet Covers | Yes | Yes | Yes | Yes | Yes | Yes |
Output Socket | 1*16A | 2*16A | 2*16A +1*32A | 2*16A +1*32A | 2*16A +1*40A | 2*16A +1*50A |
Grounding System | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral |
Battery Included | N/A | Yes | Yes | Yes | Yes | Yes |
Key Start | N/A | Yes | Yes | Yes | Yes | Yes |
Push Button One Key Start | Optional | Optional | Yes | Yes | Yes | Yes |
Remote Start | Optional | Optional | Optional | Optional | Optional | Optional |
Wheel | Solid | Solid | Solid | Solid | Solid | Solid |
Included Accessories | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel |
Dimensions : inch / (mm) | 16.9*24.2*16.9 (430*615*430) | 20.0*26.7*19.4 (510*680*495) | 20.2*27.3*23.4 (515*695*595) | 20.2*27.3*23.4 (515*695*595) | 37.4*24.4*27.5 (950*620*700) | 37.4*24.4*27.5 (950*620*700) |
Dry unit Weight : Lb / (Kg) | 91.2 / (41.4) | 154.3 / (70.0) | 176.3 / (80.0) | 186.2 / (84.5) | 370.3 / (168.0) | 373.6 / (169.5) |
Carbon Monoxide (CO) sensor | No | No | No | No | No | No |
CARB compliant | No | No | No | No | No | No |
EPA compliant | No | No | No | No | No | No |
Warranty (Res) | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
Warranty (Com) | 1 years | 1 years | 1 years | 1 years | 1 years | 1 years |
