RACK MOUNT HIGH FREQUENCY UPS 3P - 3P
URANUS-Series AUTU 20-80 KVA
URANUS UPS is the new generation three-phase tower UPS, which adopts the most advanced power electronics
and digital signal control and protection technology. It performs higher efficiency, higher performance, and more
convenient operation, and can provide users with a high-quality power supply guarantee in various industries.
Three-step IGBT PWM control technology, online mode
efficiency up to 96%, ECO mode efficiency up to 99%.Output power factor 1, provides more active power.
Higher density reduces up to 50% of the footprint.
A powerful charger declines the charging time dramatically.
Predictable component lifetime enhances system reliability.
Optimized battery management (OBM) technology,
extended batteries life by 50%. Battery 32-44 adjustment
provides a more flexible battery configuration (20-80KL)A 5-inch color touch LCD with 10 languages provides a
userfriendly interface for operation.Robust design with default dust-proof filter &PCBA coating
Standard 3.5mins backup time @100% load (20-80KS)
Easy slide & maintenance battery module (20-80KS)
Up to 4 EBCs connection for longer backup time configuration
(for 20-80KL long run model)Pre-install battery and without pre-install battery options for
flexible configuration and stock management
Benifet
Convenient operation and maintenance management :
Full-color 5” touch screen with a cool LED status indicator, which is convenient for users to check the running
status of the equipment and operation and maintenance operations.
New full-range double conversion UPS
High density, true double conversion on-line power protection for IT (Information technology) and OT
(operation technology) applications. Capable of supporting loads from 20 to 80kVA in a tower UPS.
These latest range of UPS comes with future-proof connectivity design having the capability to connect
to cloud seamlessly to allow the monitoring of the UPS online through any internet connected device. To ensure
users information is safe and protected, these connectivity is compliant with IEC standard cybersecurity and GDPR regulation.
| Model | AVRU-RT 10K 3:1 | AVRU-RT 10-KL 3:1 | AVRU-RT 10K 3:3 | AVRU-RT 10KL 3:3 | |
| Power Rating | VA/Watt | 10000VA/10000W | 10000VA/10000W | ||
| Efficiency | Double Conversion Mode | 95% | |||
| ECO Mode | 98% | ||||
| Input Performance | Voltage range | 160V-275V 100% load, 110V-160V derating to 50% load linearly | |||
| Rated Frequency | 50Hz/60Hz | ||||
| Frequency range | 40Hz-70Hz (45Hz-55Hz 54Hz-66Hz @load >60% and 1 phase in 1 phase out) | ||||
| PF | >0.95 at 3 phase input , >0.99 at 1 phase input | ||||
| THDi | <3% linear load at 3 phase input, <5% non-liner load at 1 phase input | ||||
| Input Connection | L1/L2/L3/N/PE or L/N/PE hardware terminal connection | ||||
| Battery | Voltage | 192VDC (192-240VDC adjustable) | |||
| Capacity (AH) | 16*12V7Ah / 16-20pcs adjustable | NA | 16*12V9Ah / 16-20pcs adjustable | NA | |
| Backup time Typical Value by default battery Capacity, PF=1 | 3 min – 10 min depending on load | ||||
| Max. connect external batt. module qty. | 6 | ||||
| Charge | Charging Current | 2A (0-12A adjustable) | 4A (0-12A adjustable) | 2A (0-12A adjustable) | 4A (0-12A adjustable) |
| Recharging time | 3hr to 90% | N/A | 3hr to 90% | N/A | |
| Output Performance | Rated Voltage | 220/230/240VAC | |||
| Rated Frequency | 50Hz/60Hz | ||||
| Maximum PF | 1 | ||||
| Voltage Accuracy | +/-1% | ||||
| THDv | <1% linear load , <5% non linear load | ||||
| Transfer Time | 0ms (Line<->Inverter), 4ms (Line<->bypass), 10ms (ECO<->Inverter) | ||||
| Crest Ratio | 3:01 | ||||
| Overload (line mode) | 100%<load <105% continuous, 105%<load <125% for 10minutes, 125%<load <150% for 30second, >150% for 500ms. | ||||
| Output Connection | Wiring/Socket | L/N/PE hardware terminal connection | |||
| Load Segment Control | No | ||||
| Physical performance | Dimension (W*D*H) mm | 5U height including battery rack | 438*573*86.2 (UPS module,2U) | 5U height including battery rack | 438*573*86.2 (UPS module,2U) |
| 438*573*86.2 (UPS module,2U) | 438*573*86.2 (UPS module,2U) | ||||
| 438*593*129 (Battery module,3U) | 438*593*129 (Battery module,3U) | ||||
| IP protection level | IP20 | ||||
| HMI (human-machine interface) | Display | Dot matrix LCD, rotatable manually/(optional segment LCD) | |||
| Language | 10 Languages | ||||
| USB | USB 2.0 with HID | ||||
| RS232 | Yes (DB9) | ||||
| Dry in/out | 1 programable dry in; 1 programable dry out | ||||
| EPO | Yes | ||||
| Intelligent slot | Yes (for long card) | ||||
| Network card | Optional, NMC long card | ||||
| Modbus card | Optional , CMC/Modbus Long Card | ||||
| Dry contactor card | Optional AS400 Long Card | ||||
| WLAN module | Optional , HDMI type | ||||
| Ethernet port for IOT | RJ45 | ||||
| Monitor software | Winpower | ||||
| Other working mode | CVCF | Yes (derating to 60% load) | |||
| Parallel | Optional (up to 3) | ||||
| Environment | Operating temperature | 0-50°C (power derating to 50% @ 40-50°C | |||
| Relative Humidity | 0-95% | ||||
| Operating Altitude | 0-3000m (the load derating 1% every up 100m @1000-3000m) | ||||
| Acoustic Noise | <55dB @ typical load with battery fully charged | ||||
| Accessory | Maintenance bypass switch | Optional ( need MBP model ) | |||
| Input power cable | NA | ||||
| Output power cable | NA | ||||
| EBM cable | Yes (in EBM) | ||||
| USB cable | Yes | ||||
| RS232 cable | Optional | ||||
| Rail kit | Optional | ||||
| Tower Feet | Yes | ||||
| Rack ear | Yes | ||||
| Manual | Yes | ||||
| Certification | CE, IEC/EN 62040 | ||||
| EMI | Conduction/Radiation | C3 | |||
| EMS | ESD | IEC/EN 61000-4-2 | |||
| RS | IEC/EN 61000-4-3 | ||||
| EFT | IEC/EN 61000-4-4 | ||||
| Surge | IEC/EN 61000-4-5 | ||||

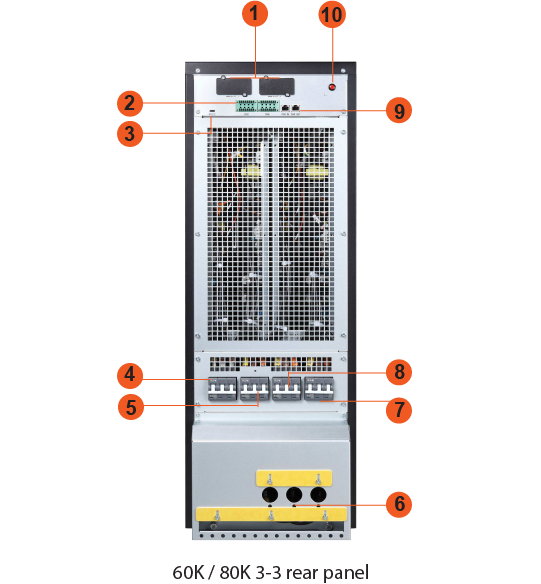

 1 ) Intelligent Slot -12 ) alarm input 3 ) rs232 4 ) Input / output terminal 5 ) output switch 6 ) maintenance bypass switch 7 ) bypass switch 8) input switch 9 ) rJ45 10 ) Battery startup |

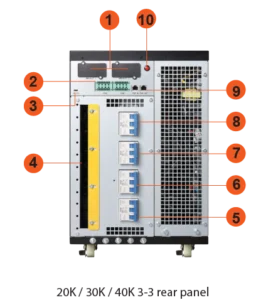

 1 ) Intelligent Slot -12 ) alarm input 3 ) rs232 4 ) Input switch 5 ) maintenance bypass switch 6 ) input/output terminal 7 ) output switch 9 ) rJ458) bypass switch 10 ) Battery startup |
