Commercial Gasoline Generator - N. America Version
N. America Series 4.5KVA - 15.0KVA
KEY FEATURES
- Power range: 4.5kW – 15.0kW
- 120V / 60Hz output
- 120V and 240V
- Petrol engine (4-stroke, OHV)
- Electric + recoil start
- 100% copper alternator
- Low oil & overload protection
- Digital display & fuel gauge
- Multiple power outlets (20A–50A)
- Fuel tank: 15L – 45L (4.0gal – 11.8gal)
- Noise: 68–79 dBA
- Solid wheels for mobility
- Dual Fuel Optional (Gasoline & LPG)
- 3-year warranty (home use)

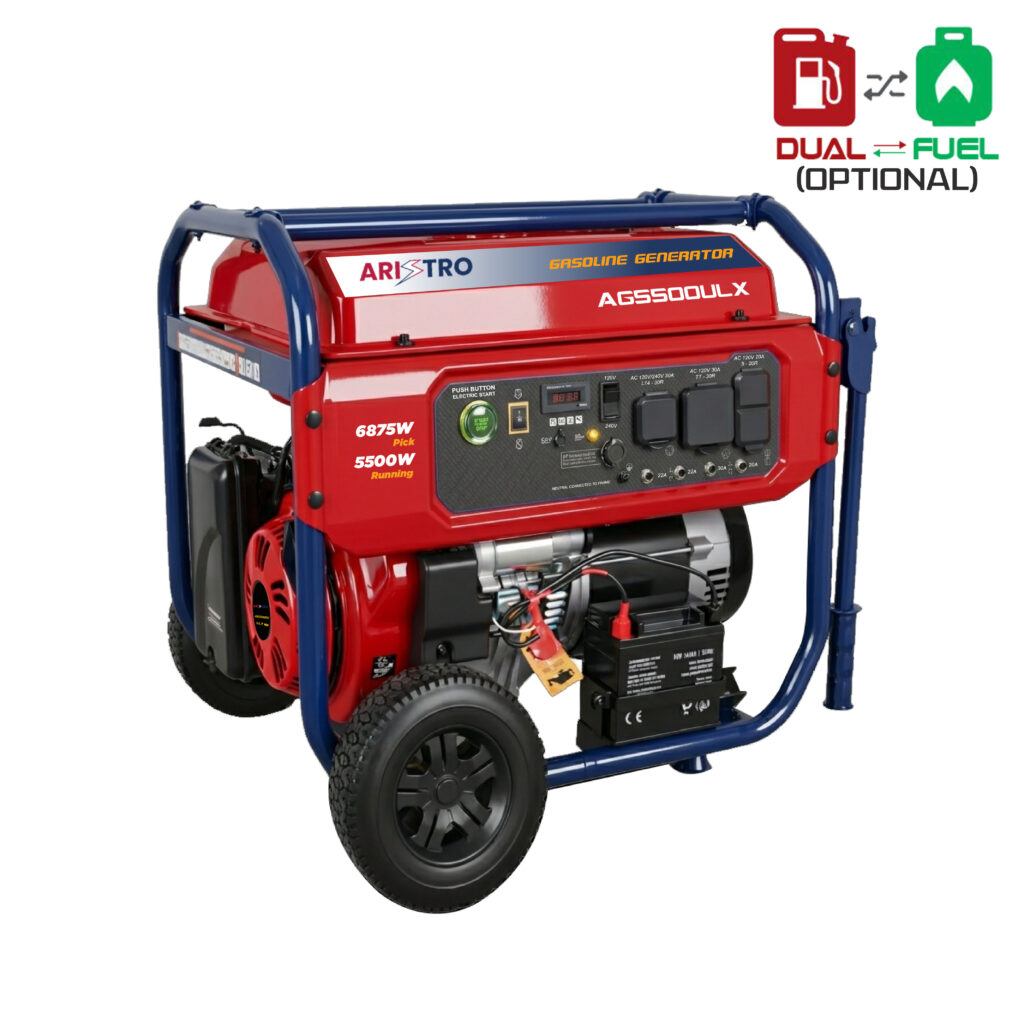

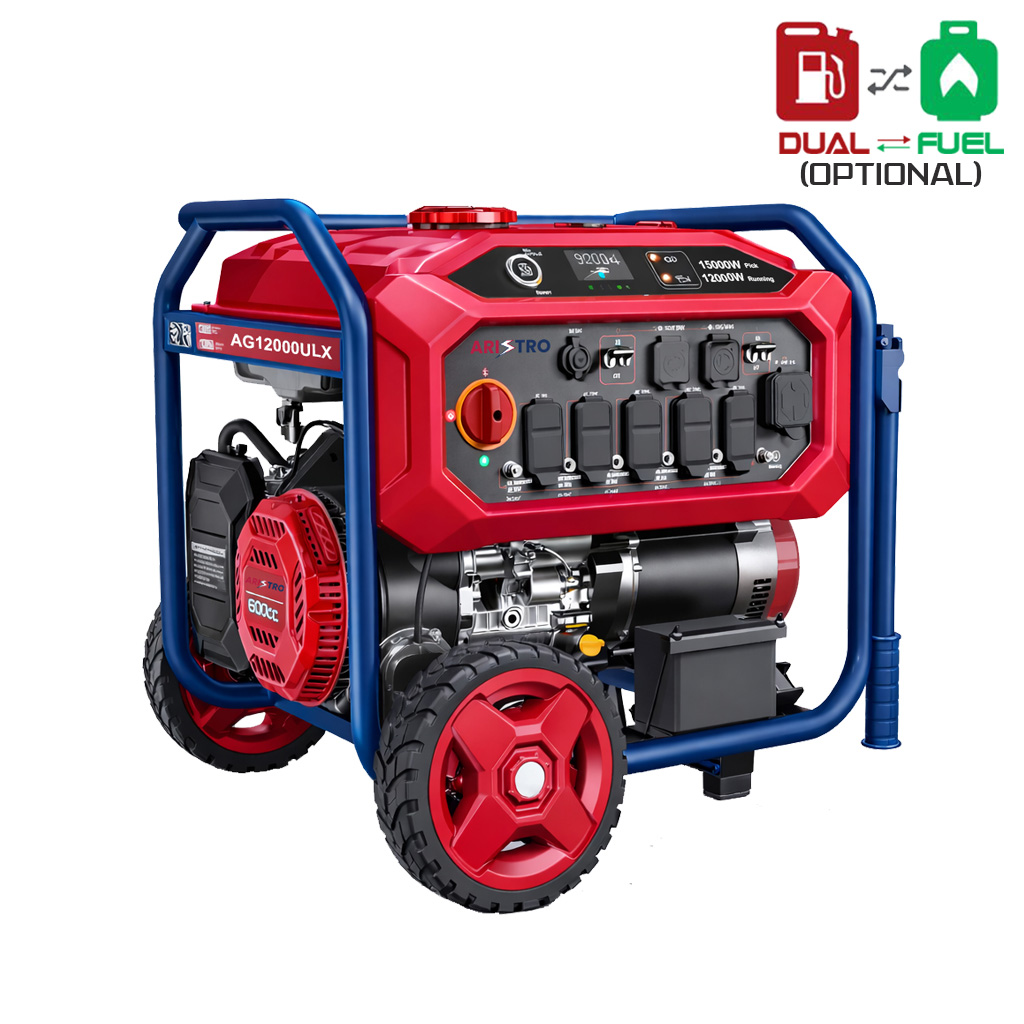

MODEL | AG3650ULX | AG3650ULX-Co | AG5500ULX | AG5500ULX-Co | AG7500ULX | AG7500ULX-Co | AG9500ULX | AG10500ULX-Co | AG1200ULX-Co
|
Gasoline Peak Watt | 4550W | 4550W | 6875W | 6875W | 9375W | 9375W | 12000W | 13500W | 15000W |
Gasoline Running Watt | 3650W | 3650W | 5500W | 5500W | 7500W | 7500W | 9500W | 10500W | 12000W |
Gasoline Peak Amps | 37.9A, 120V | 37.9A, 120V | 28.6A, 240V, 57,3A, 120V | 28.6A, 240V, 57,3A, 120V | 39.1A, 240V, 78.1A, 120V | 39.1A, 240V, 78.1A, 120V | 50.0A, 240V, 100.0A, 120V | 56.2A, 240V, 112.5A, 120V | 62.5A, 240V, 125.0A, 120V |
Gasoline Running Amps | 30.4A, 120V | 30.4A, 120V | 22.9A, 240V, 45.8A, 120V | 22.9A, 240V, 45.8A, 120V | 31.3A, 240V, 62.5A, 120V | 31.3A, 240V, 62.5A, 120V | 39.6A, 240V, 79.2A, 120V | 43.8A, 240V, 87.5A, 120V | 50.0A, 240V, 100.0A, 120V |
|
|
|
|
|
|
|
|
|
|
Engine Brand | ARISTRO | ARISTRO | ARISTRO | ARISTRO | ARISTRO | ARISTRO | ARISTRO | ARISTRO | ARISTRO |
Engine model | AEG210E-U | AEG210E-U | AEG390E-U | AEG390E-U | AEG420E-U | AEG420E-U | AEG500E-U | AEG500E-U | AEG600E-U |
Engine Displacement | 223CC | 223CC | 389CC | 389CC | 420CC | 420CC | 500CC | 500CC | 600CC |
Engine Max. output | 7.5 HP | 7.5 HP | 11.7 HP | 11.7 HP | 13.5 HP | 13.5 HP | 21.0 HP | 21.0 HP | 36.0 HP |
Engine Bore x Stoke | 70*58mm | 70*58mm | 88*64mm | 88*64mm | 90*66mm | 90*66mm | 94*72mm | 94*72mm | 96*82.5mm |
Engine Type | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV | 4 Stoke, OHV |
Engine RPM | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 |
Engine Net Power | 4.5kw / 3600rpm | 4.5kw / 3600rpm | 7.8kw / 3600rpm | 7.8kw / 3600rpm | 8.8kw / 3600rpm | 8.8kw / 3600rpm | 15.6kw / 3600rpm | 15.6kw / 3600rpm | 26.8kw / 3600rpm |
Engine Oil Capacity | 0.6L / 20.2oz | 0.6L / 20.2oz | 1.1L / 37.1oz | 1.1L / 37.1oz | 1.1L / 37.1oz | 1.1L / 37.1oz | 1.2L / 40.5oz | 1.2L / 40.5oz | 1.1L / 37.1oz |
Engine Oil Type | 10W30 | 10W30 | 10W30 | 10W30 | 10W30 | 10W30 | 10W30 | 10W30 | 10W30 |
Ignition System | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto | Transistorized magneto |
Automatic Low Oil Shutdown | YES | YES | YES | YES | YES | YES | YES | YES | YES |
Fuel | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane | Petrol / Octane |
|
|
|
|
|
|
|
|
|
|
Alternator Brand | Aristro | Aristro | Aristro | Aristro | Aristro | Aristro | Aristro | Aristro | Aristro |
Alternator Model | AA5000-U | AA5000-U | AA7000-U | AA7000-U | AA9500-U | AA9500-U | AA12500 | AA13500 | AA15000 |
Alternator Capacity | 4550W | 4550W | 6875W | 6875W | 9375W | 9375W | 12000W | 13500W | 15000W |
Alternator Core | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper |
Alternator Type | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase | Self-exciting, 2-pole, Field Rotating Type, Single-phase |
Ac Voltage | 120V | 120V | 120V/240V | 120V/240V | 120V/240V | 120V/240V | 120V/240V | 120V/240V | 120V/240V |
AC Frequency | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
DC Voltage | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | 12V 8.3A |
Insulation Class | H | H | H | H | H | H | H | H | H |
|
|
|
|
|
|
|
|
|
|
Smart Transfer Switch Ready | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
RV Ready | Yes | Yes | YES | YES | Yes | Yes | Yes | Yes | Optional |
Display Type | Digital Readout | Digital Readout | Digital Readout | Digital Readout | Digital Readout | Digital Readout | Digital Readout | Digital Readout | Digital Readout |
Oil Alert | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Noice level | 68 dBA | 68 dBA | 74 dBA | 74 dBA | 74 dBA | 74 dBA | 76 dBA | 76 dBA | 76 dBA |
Fuel Gauge | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Fuel Tank Capacity | 4.0 gal (15L) | 4.0 gal (15L) | 4.7 gal (18L) | 4.7 gal (18L) | 9.2 gal (35L) | 9.2 gal (35L) | 9.2 gal (35L) | 11.8 gal (45L) | 11.8 gal (45L) |
Starter Type | Recoil | Recoil | Electric & Recoil | Electric & Recoil | Electric & Recoil | Electric & Recoil | Electric & Recoil | Electric & Recoil | Electric & Recoil |
Choke Type | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
Overload Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Outlet Covers | YES | YES | YES | YES | YES | YES | YES | YES | YES |
Output Socket | 1* 120V Duplex 5-20R | 1* 120V Duplex 5-20R | 1* 120V Duplex 5-20R | 1* 120V Duplex 5-20R | 2* Duplex 120V 5-20R | 2* Duplex 120V 5-20R | 2* Duplex 120V 5-20R | 2* Duplex 120V 5-20R ST switch, USB | 2* Duplex 120V 5-20R ST switch, USB |
Grounding System | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral | Bonded Neutral |
Battery Included | NO | NO | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Key Start | NO | NO | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Push Button One Key Start | Optional | Optional | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Remote Start | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
Wheel | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid |
Included Accessories | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel | Spark Plug Wrench, Plug, Oil Funnel |
Dimensions : inch / (mm) | 23.6*18.3*18.0 (600*465*458) | 23.6*18.3*18.0 (600*465*458) | 26.8*21.2*21.3 (683*540*542) | 26.8*21.2*21.3 (683*540*542) | 27.7*20.5*22.4 (705*525*570) | 27.7*20.5*22.4 (705*525*570) | 27.7*20.5*22.4 (705*525*570) | 28.5*22.8*24.6 (725*580*625) | 28.2*22.8*24.6 (725×580×625) |
Dry unit Weight : Lb / (Kg) | 90.3 / (42.0) | 90.3 / (42.0) | 191.0 / (87.0) | 191.0 / (87.0) | 197.3 / (89.5) | 197.3 / (89.5) | 186.2 / (84.5) | 227.6 / (103.0) | 231.4 / (105.0) |
Carbon Monoxide (CO) sensor | No | Yes | No | Yes | No | Yes | No | Yes | Yes |
Dual Fuel (Gasoline & Propane) | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
CARB compliant | No | Yes | No | Yes | No | No | No | No | No |
EPA compliant | No | Yes | No | Yes | No | No | No | No | No |
PGMA compliant | No | Yes | No | Yes | No | No | No | No | No |
Warranty (Res) | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
Warranty (Com) | 1 years | 1 years | 1 years | 1 years | 1 years | 1 years | 1 years | 1 years | 1 years |
