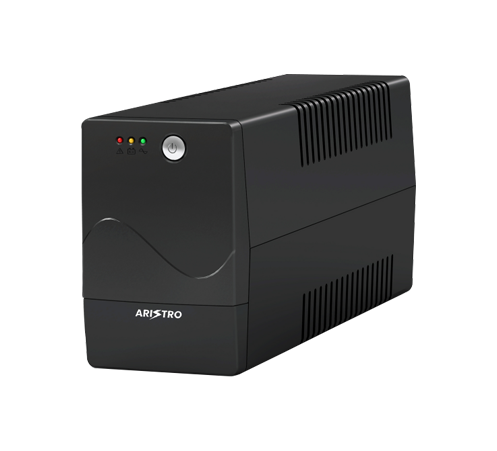

Line interactive ups MURCURY Series AMLU 0.65-2.0 KVA

Line interactive ups MURCURY Series AMLU 0.65-2.0 KVA

KEY FEATURES

  • LED display or LCD display
  • Microprocessor-based digital control
  • Wide range of
  • Build-in voltage regulator with double boost / single buck for reliable power quality
  • Super fast charger shortens the charging time to 2~4 hours
  • Tiny-Load sensing technology prevents the battery from deep discharge problem while connecting to tiny loads
SKU: Aristro_Astra 0.6-2KVA Categories: ,

Description

KEY FEATURES

  • LED display or LCD display
  • Microprocessor-based digital control
  • Wide range of
  • Build-in voltage regulator with double boost / single buck for reliable power quality
  • Super fast charger shortens the charging time to 2~4 hours
  • Tiny-Load sensing technology prevents the battery from deep discharge problem while connecting to tiny loads
  • Auto restart that UPS can automatically start without manual setting up when AC input power is back on line
  • Overload protection that alert or shutdown action will be performed for preventing further damage to UPS during overload
  • Simulated Sine wave output
  • Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time
  • Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge

PRODUCT SPECIFICATION

MODEL NAME                         AMLU 650 AMLU 850 AMLU 1000 AMLU 1200 AMLU 1500 AMLU 2000
Power rating VA/Watt 650VA/390W 850VA/480W 1000VA/600W 1200VA/720W 1500VA/900W 2000VA/1200W
Input connection Wiring/socket Fixed power cord 3 pin plug UK / NEMA / Schucko / IEC C14


Input performance

 Voltage range 140V – 300V AC
Rated frequency 50Hz/60Hz (auto sensing)










Output performance











Output connection

 Nominal Output voltage 220/230/240V
Rated Output frequency 50Hz +/-1Hz
AC Voltage Ragulation (Batt. mode) +/-10%
Output Waveform Modified Sine wave
Technology Line interactive
Cold Start Available
Output socket Universal / Schoku / 3 * IEC C13 / NEMA


Battery

 Voltage 12VDC 12VDC 24VDC 24VDC 24VDC 24VDC
Capacity(AH) 1x12V/7.5Ah 1 x 12V/9Ah 2 x 12V/7.5Ah 2 x 12V/7.5Ah 2 x 12V/9Ah 2 x 12V/9Ah
Backup time Depending on load
Trpical Charging time 2-4 Hours recharge to 90% capacity
Transfer time Battery mode – Line mode 2-6ms typical
Display LED / LCD (Optional)
Protection Short circuit, Overload , Discharge and Overcharge protection
Audible Alarm Available


Environment

 Operating Temperature 0 – 40 C
Noise Level <40 dB <45 dB


Interface

 USB Optional
TVSS protection Optional (RJ11) Optional (RJ45)




Accessory

 USB cable Optional
CD for COM S/W Optional
RS 232 Port Optional


Physical

 Dimension(DxWxH) 278 * 100 * 143 mm 364 * 139 * 195 mm
Net weight 4.2 kg 4.9 kg 7.8 kg 7.9 kg 9.1 kg 9.3 kg
